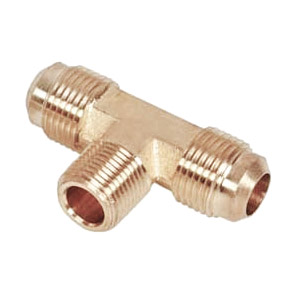

Brass Flare Branch Tee
Brass Flare Branch Tee
029-DFBT
In order to efficiently split or combine fluid, gas, or refrigerant flow inside pipe systems, the Brass Flare Branch Tee is a high-precision three-way fitting that connects three flare tubes at right angles. This fitting offers exceptional mechanical strength, corrosion resistance, and long-lasting durability since it is made of high-quality forged brass alloys like CW617N or C37700.
The Brass Flare Branch Tee’s precisely machined flare connectors provide tight metal-to-metal sealing and leak-proof performance without the need for extra sealing chemicals. Because of its sturdy design, it can function dependably in harsh environments, such as high-pressure HVAC, refrigeration, gas, and industrial fluid systems.
This fitting is frequently used in industrial piping systems, automotive fluid lines, air conditioning systems, and refrigeration units, where reliable three-way connections are crucial for effective system operation.
Product Features
Material: Forged brass (CW617N) ensuring excellent mechanical strength, corrosion resistance, and thermal conductivity
Connection Type: Flare to Flare branch tee for connecting three tubes via SAE flare fittings
Thread Standards: Standard SAE flare threads with options for NPT, BSP, BSPT, or metric threads upon request
Surface Finish: Natural brass finish with optional nickel or chrome plating for enhanced corrosion resistance and aesthetic appeal
Pressure Rating: Suitable for high-pressure systems up to 800 PSI, depending on size
Temperature Range: Operates reliably from -65°F (-53°C) up to +250°F (121°C)
Seal Type: Metal-to-metal flare sealing ensuring leak-tight connections without O-rings or gaskets
Manufacturing: CNC-machined with tight tolerances to guarantee accurate fitting and smooth threading
Quality Control: Each unit is pressure tested to meet strict leak-proof standards
OEM & Customization Capabilities
Custom Thread Types: NPT, BSPT, BSP, Metric
Branding: Laser engraving of company logos, part numbers, or custom markings
Surface Treatments: Nickel plating, chrome plating, or other corrosion-resistant finishes
Packaging: Tailored packaging solutions including retail-ready boxes, bulk cartons, or custom labeling
MOQ: Flexible order quantities, supporting small batch or large volume production
Technical Collaboration: 3D CAD drawings, sample approval, and prototyping support for custom designs
Fast Lead Times: Streamlined production process with priority for OEM/custom orders
Applications
Residential, commercial, and industrial HVAC and air conditioning systems
Refrigeration lines carrying refrigerants like R22, R134a, R410A
Gas and fuel distribution piping systems
Automotive brake, fuel, and cooling lines
Marine fluid transfer and plumbing installations
Hydraulic and pneumatic control systems
Certifications & Quality Assurance:
ISO 9001:2015 certified manufacturing facility
RoHS and REACH environmental compliance
Stringent material inspections and batch traceability
100% pressure and leak testing on all units before shipment
Complies with SAE J512 standards for flare fittings
Standard Size Chart (Flare Tube OD & Thread Dimensions)
Flare Tube Outer Diameter (in) SAE Flare Thread (UNF) Approx. Metric (mm) 1/4″ 7/16-20 6.35 3/8″ 5/8-18 9.52 1/2″ 3/4-16 12.7 5/8″ 7/8-14 15.88 3/4″ 1-1/16-14 19.05
